引言

Black Forest Labs 的新文本生成图像模型FLUX.1自推出以来就引起了开源社区很大的轰动，成为新一代的文生图模型的旗舰。虽然开源时间不久，但围绕Flux.1的社区开源生态发展迅猛，包括量化版本，GGUF版本，以及配套的Controlnet模型、LoRA模型均在各大开源平台上线，而配合各个模型的使用，对应的ComfyUI工作流也在蓬勃发展。

应近日来诸多社区开发者的学习诉求，特为大家推出一期 FLUX.1-LoRA/IP-adapter+ComfyUI +“顶流”IP「黑神话：悟空」的模型推理实战教程，玩转一把AI悟空生图 👀
PS：本教程只限社区学习使用，不可投入商业用途。

最佳实践

环境配置和安装：

python 3.10及以上版本
pytorch 1.12及以上版本，推荐2.0及以上版本
建议使用CUDA 11.4及以上

本文在魔搭社区免费提供的GPU免费算力上体验：

开发者也可以使用modelscope的官方镜像，在云端或自有的设备上体验。

GPU环境镜像(python3.10)：

registry.cn-beijing.aliyuncs.com/modelscope-repo/modelscope:ubuntu22.04-cuda12.1.0-py310-torch2.1.2-tf2.14.0-1.13.1
registry.cn-hangzhou.aliyuncs.com/modelscope-repo/modelscope:ubuntu22.04-cuda12.1.0-py310-torch2.1.2-tf2.14.0-1.13.1
registry.us-west-1.aliyuncs.com/modelscope-repo/modelscope:ubuntu22.04-cuda12.1.0-py310-torch2.1.2-tf2.14.0-1.13.1

下载和部署ComfyUI

clone代码，并安装相关依赖，链接如下：

https://github.com/comfyanonymous/ComfyUI

https://github.com/ltdrdata/ComfyUI-Manager

https://github.com/Suzie1/ComfyUI_Comfyroll_CustomNodes.git

# #@title Environment Setup

from pathlib import Path

OPTIONS = {}
UPDATE_COMFY_UI = True  #@param {type:"boolean"}
INSTALL_COMFYUI_MANAGER = True  #@param {type:"boolean"}
INSTALL_CUSTOM_NODES_DEPENDENCIES = True  #@param {type:"boolean"}
INSTALL_ComfyUI_Comfyroll_CustomNodes = True #@param {type:"boolean"}
INSTALL_x_flux_comfyui = True  #@param {type:"boolean"}
OPTIONS['UPDATE_COMFY_UI'] = UPDATE_COMFY_UI
OPTIONS['INSTALL_COMFYUI_MANAGER'] = INSTALL_COMFYUI_MANAGER
OPTIONS['INSTALL_CUSTOM_NODES_DEPENDENCIES'] = INSTALL_CUSTOM_NODES_DEPENDENCIES
OPTIONS['INSTALL_ComfyUI_Comfyroll_CustomNodes'] = INSTALL_ComfyUI_Comfyroll_CustomNodes
OPTIONS['INSTALL_x_flux_comfyui'] = INSTALL_x_flux_comfyui

current_dir = !pwd
WORKSPACE = f"{current_dir[0]}/ComfyUI"



%cd /mnt/workspace/

![ ! -d $WORKSPACE ] && echo -= Initial setup ComfyUI =- && git clone https://github.com/comfyanonymous/ComfyUI
%cd $WORKSPACE

if OPTIONS['UPDATE_COMFY_UI']:
  !echo "-= Updating ComfyUI =-"
  !git pull


if OPTIONS['INSTALL_COMFYUI_MANAGER']:
  %cd custom_nodes
  ![ ! -d ComfyUI-Manager ] && echo -= Initial setup ComfyUI-Manager =- && git clone https://github.com/ltdrdata/ComfyUI-Manager
  %cd ComfyUI-Manager
  !git pull

if OPTIONS['INSTALL_ComfyUI_Comfyroll_CustomNodes']:
  %cd ..
  !echo -= Initial setup ComfyUI_Comfyroll_CustomNodes =- && git clone https://github.com/Suzie1/ComfyUI_Comfyroll_CustomNodes.git

if OPTIONS['INSTALL_x_flux_comfyui']:
  !echo -= Initial setup x-flux-comfyui =- && git clone https://github.com/XLabs-AI/x-flux-comfyui.git

if OPTIONS['INSTALL_CUSTOM_NODES_DEPENDENCIES']:
  !pwd
  !echo "-= Install custom nodes dependencies =-"
  ![ -f "custom_nodes/ComfyUI-Manager/scripts/colab-dependencies.py" ] && python "custom_nodes/ComfyUI-Manager/scripts/colab-dependencies.py"

!pip install spandrel

下载一些模型（包含Flux.1基础模型，Lora，Controlnet，IP-adapter等），并存放到models目录的相关子目录下。小伙伴们可以选择自己希望使用的模型并下载。

感谢社区开发者们lora的贡献！

模型链接：

https://www.liblib.art/modelinfo/5e4a4cc0e3674818a9f8454a63cc0115

模型链接：

https://huggingface.co/wanghaofan/Black-Myth-Wukong-FLUX-LoRA

#@markdown ###Download standard resources
%cd /mnt/workspace/ComfyUI
### FLUX1-DEV
!modelscope download --model=AI-ModelScope/flux-fp8 --local_dir ./models/unet/ flux1-dev-fp8.safetensors

### clip
!modelscope download --model=AI-ModelScope/flux_text_encoders --local_dir ./models/clip/ clip_l.safetensors
!modelscope download --model=AI-ModelScope/flux_text_encoders --local_dir ./models/clip/ t5xxl_fp8_e4m3fn.safetensors

### vae
!modelscope download --model=AI-ModelScope/FLUX.1-dev --local_dir ./models/vae/ ae.safetensors


### lora
!modelscope download --model=FluxLora/flux-koda --local_dir ./models/loras/ araminta_k_flux_koda.safetensors
!modelscope download --model=FluxLora/Black-Myth-Wukong-FLUX-LoRA --local_dir ./models/loras/ pytorch_lora_weights.safetensors
!modelscope download --model=FluxLora/FLUX1_wukong_lora --local_dir ./models/loras/ FLUX1_wukong_lora.safetensors

### ip-adapter
!modelscope download --model=FluxLora/flux-ip-adapter --local_dir ./models/xlabs/ipadapters/ flux-ip-adapter.safetensors
!modelscope download --model=FluxLora/flux-ip-adapter --local_dir ./models/clip_vision/ clip_vision_l.safetensors

使用cloudflared运行ComfyUI

!wget "https://modelscope.oss-cn-beijing.aliyuncs.com/resource/cloudflared-linux-amd64.deb"
!dpkg -i cloudflared-linux-amd64.deb

%cd /mnt/workspace/ComfyUI
import subprocess
import threading
import time
import socket
import urllib.request

def iframe_thread(port):
  while True:
      time.sleep(0.5)
      sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
      result = sock.connect_ex(('127.0.0.1', port))
      if result == 0:
        break
      sock.close()
  print("\nComfyUI finished loading, trying to launch cloudflared (if it gets stuck here cloudflared is having issues)\n")

  p = subprocess.Popen(["cloudflared", "tunnel", "--url", "http://127.0.0.1:{}".format(port)], stdout=subprocess.PIPE, stderr=subprocess.PIPE)
  for line in p.stderr:
    l = line.decode()
    if "trycloudflare.com " in l:
      print("This is the URL to access ComfyUI:", l[l.find("http"):], end='')
    #print(l, end='')


threading.Thread(target=iframe_thread, daemon=True, args=(8188,)).start()

!python main.py --dont-print-server

load ComfyUI流程图，链接：

https://modelscope.oss-cn-beijing.aliyuncs.com/resource/workflow-flux-lora-simple.json

https://modelscope.oss-cn-beijing.aliyuncs.com/resource/workflow-flux-lora-wukong.json

https://modelscope.oss-cn-beijing.aliyuncs.com/resource/ip_adapter_workflow.json

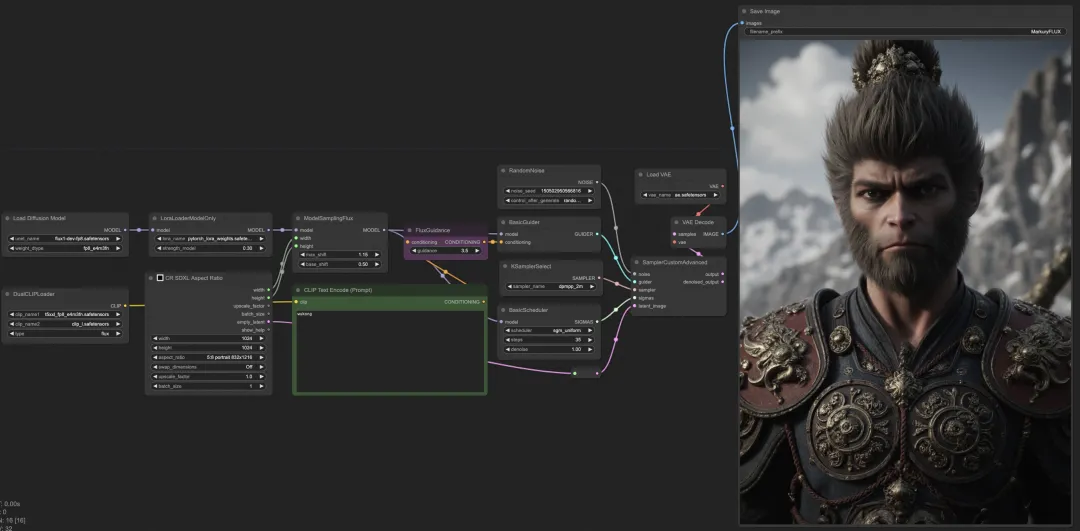

lora流程图片如下：
